Pharmaceutical Equipments

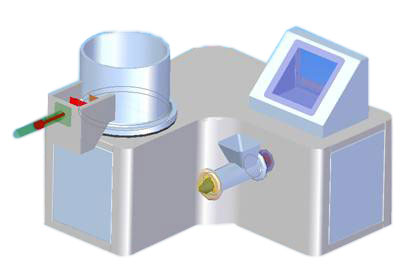

1) Extruder:
  • Extruder suitable for spheronization.
  • Cost effective for scale-up.
  • Ease of scale up and for cost-efficiency in Production
  • Easy cleaning and maintenance

2) Spheronizer:
  • Spheronization means formation of spheres or pellets.Spheronization, pelletization and micropelletization all mean the same thing.
  • The products produced by these processes can be called spheroids, spheres, micro-spheres, pellets, micro-pellets or pharmaceutical pellets.
  • The size range is normally from about 0.8 mm to about 1.5 mm in diameter.
  • Spheroid size is determined by extruder screen hole diameter.

3) Multimill:
Multi mills is a self contained portable unit useful for high speed Granulating, Pulverizing, Mixing, Shredding, Chopping etc., a wide range of wet & dry materials without special attachments. As compared to the four common principles of size reduction, this machine utilities the principle of variable force swing hammer blades having both knife and impact edges rotating with a carefully selected screen to control reduction. Flow path of material in vertical rotor machine is streamlined. During comminuting, material entering the chamber travels to the periphery and passes through the screen tangentially and radially avoiding choking and rise in temperature.
  • All contact parts Ss304 / 316 / 316L AISI quality
  • Machine rated for continuous operation.
  • High output with process uniformity.
  • Direction of blade rotation by reversing switch.
  • Various combinations of screens / speeds / number of blades / direction of rotation blade, can be selected.
  • High screen opening area for higher thought.
  • All contact parts can easily be dismantled and cleaned for change of product. Wide range of SS perforated and wire knitted screen available.
  • Dust free operation.
  • Additional perforated screen at the bottom of pulverizing chamber of eliminate higher percentage of fitness and control granule size more effectively and obtain higher outputs.
  • Machine portable on castor wheels.

4) Paste Kettles:
We are instrumental in offering a quality range of Paste Kettle Vessel, specially manufactured by high grade raw material. This Paste Kettle Vessel is widely appreciated for its features like efficient for preparation of starch paste, excellent durability, strong structure, high performance and fine finishing. We are also offering customized range of Paste Kettle Vessels as per the requirement of the client. We are offering Paste Kettle Vessel at market leading prices. We are instrumental in offering a quality range of Paste Kettle Vessel, specially manufactured by high grade raw material. This Paste Kettle Vessel is widely appreciated for its features like efficient for preparation of starch paste, excellent durability, strong structure, high performance and fine finishing. We are also offering customized range of Paste Kettle Vessels as per the requirement of the client. We are offering Paste Kettle Vessel at market leading prices.
  • Entire construction in Stainless steel
  • Semi hemispherical bowl ensure that entire bowl can be emptied by rotating the worm wheel.
  • Simplified construction enables ease of operation. Easy to operate.
  • Steam or electric heating is possible depending upon the user requirements.
  • When used with stirrer / anchor the movement of anchor is forward and reverse using cyclic timer.
  • Stirrer can be supplied at additional cost, contact parts are SS 304 / 316.
  • When supplied with stirrer, there is a top entry drive without using any "V" belt.
  • Stirrer can also be removed for cleaning. Temperature indication is possible at additional cost.

5) Coating Pan:
The Coating Pan is simple unit, which employs the principle of rolling a batch of tablets in an elliptical pan, spraying the coating solution on it and passing hot air across the tablet bed. An exhaust blower may be used to carry away the excess fumes generated during the coating and drying process. Rikon manufactures coating pan of various capacities ranging from 12 lab model to 72 conventional types.
  • Rolling a batch of tablets in an elliptical pan
  • Spraying the coating solution on it and passing hot air across the tablet bed.

6) Vibro Shifter:
Size available: 12 / 20 / 30 / 48 60 & 72 dia. This vibrating energy screen is unit consisting of circular pre tensioned screen mounted on the frame along with vibrating motor. The vibrating motor imparts three plane vibrations to the screen due to revolving eccentric weights. Total assembly is mounted on suitable springs so that it becomes a independent body which vibrates without parting any vibrations to the foundations.

Special Features:

  • High capacity & optimum use of space.
  • Process adaptability.
  • Low operating and maintenance cost.
  • Long screen life.
  • Easy for assembly & dis assembly for cleaning & change over of screens.
  • Springs amplify the vibrations leading to reduced motor HP, maintenance & operational cost.
  • Compact unit for easy of operations.
  • Available in two, three & four deck also.

Technical Specification:

  • Model : 24" / 30" / 40"
  • Drive Motor : 0.5 / 0.75 / 1.0 HP.
  • Screen diameter : 600 / 750 / 990 mm ( approx.)
  • All contact parts are made out of SS304 quality material. ( SS316 Optional )
  • D.O.L. starter provided with the unit.
  • Output : 24" : up to 150 Kgs./ Hr.
    30" : up to 200 Kgs./ Hr.
    40" : up to 300 Kgs./ Hr.
    ( Depending upon the material properties and the screen size )

Optional :

  • Contact parts are made out of SS316 quality material instead of SS304.
  • Single Deck / Double Deck / Three Deck.

  Recommended :

  • Wide range of seaves available in sizes from 4 mesh to 150 mesh.

7) Pharma Bin lifter:
Owing to our expertise in this domain, we are manufacturing, supplying and exporting a comprehensive range of superior quality Bin Lifter. Offered bin lifters are manufactured by our experts using high grade raw material and components that are obtained from the most trusted vendors of the market.
Available in standard capacities of: 60 kg 100 kg 200 kg 300 kg
  • Fully automatic system.
  • Hydraulic lifting and tipping arrangement helps in quick and easy handling.
  • Eliminates tedious manual handling of material.
  • Quick fixing lever clamp is provided on the cone.
